JOHN WINTER
PATTERNSHOP SUPPLIES AND COREBOX HARDWEAR
MODEL BOARD, FAST-CAST RESINS, BRASS COREBOX VENTS & MORE
FOUNDRY STUDS CORES MOULDS CASTINGS FOSECO
A comprehensive range of Elantas Fast Cast Resins, Model Board, Dowels, Corebox Vents, Abrasives and Adhesives
John Winter stocks a wide range of Pattern Shop supplies. The range of products includes various density model board, fast cast resins that can also bond sheets of model board together for large pattern builds. To bulk out fast cast resins we have 2 types of filler.
We also supply sanding sealer, pattern paints and release agents for fast cast resins. Also in stock are various size and grades of sanding discs and sand papers.
​
Fast Cast Pattern Resins and Pattern Fillers

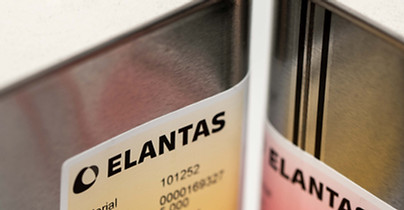

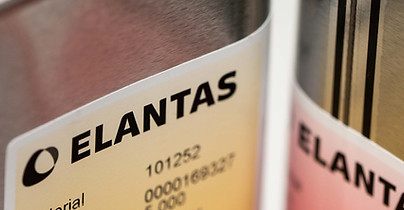

Elantas PU Casting Resins
Download the Technical Specs Sheet for our range of Fast Resins
Elantas Fast Cast Resin
PU466 & G106
Resin & Hardener
PU466 and G106 Fast Cast resin and hardener is a polyurethane casting resin for high strength durable patterns.
Elantas Fast Cast Resin
Blue Gel MS 252
Resin & Hardener
Resin & Hardener
Blue Gel resins are high quality casting resins that offer good dimensional accuracy and a smooth finish.
Elantas Fast Cast Resin
PC25 Resin &
G226 Hardener
Resin & Hardener
PC25 and GU226 resin and hardener are quality, fast casting resins that can cast accurate models. Excellent at bonding sheets of model board together.
Fast Cast Resin Bulking Agents and Filler
Powder fillers to reduce resin usage.
Casting Resin Filler

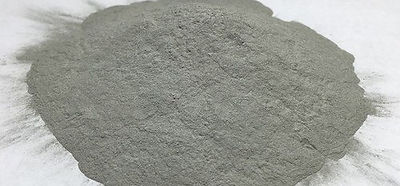

EF35 Aluminium Powder
Filler
EF35 is an aluminium powder filler used to bulk out fast cast resins.
Pattern Filler

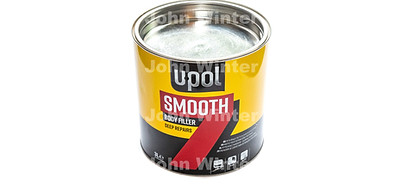

Super Smooth No.7
Filler
Excellent for repairing patterns, adding fillets and radii. Sands easily to leave a very smooth finish. Can be sealed with Sanding Sealer and then painted or waxed with release agent.
Pattern Paints, Sealants and Release Agents
Surface treatment coagulants and fluxes
Pattern Paint
Resolan Pattern Paint
Paint
A range of pattern paints and varnishes in standard pattern colours. Compatible solvent also available.
Pattern Paint
JW Quality Pattern Paint
Paint
A range of pattern paints and varnishes in standard pattern colours. Compatible solvent also available.
Pattern Paint
Sanding Sealer
Paint
A range of pattern paints and varnishes in standard pattern colours. Compatible solvent also available.
Release Agent
Z15 Release Agent
Release for Fast Cast Resin
Z15 is probably the best fast cast resin release agent on the market. It produces a slip plane between the resin and pattern so duplicates and resin copies off patterns, release easily.
Release Agent

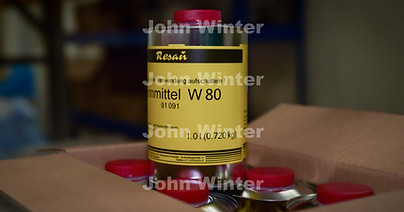

W80/ W70 Wax Release Agent
Release for Fast Cast Resin
W80 and W70 are very effective release agents for fast cast resins.
W80 has a lower wax solids content, 6%. Leaves very few impressions on fast cast resin.
W70 has a higher wax solids content of 16% to aid strip. Especially good for hard to remove, fast cast resin duplications. Will leave some surface marks on resin mould surface.
Sealant
Yellow Plasticine
Used for Casting Resins
Yellow Plasticine is commonly used to seal the edges of a frame when pouring fast cast resins.
Sand Paper & Sanding Discs
A comprehensive range of sanding products
Sand Paper & Discs

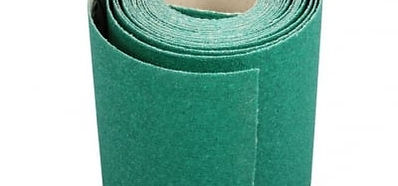

Sand Paper
Various Grades of Grit
Multiple grades of sand paper available on both rolls and flat sheets.
Sand Paper & Discs

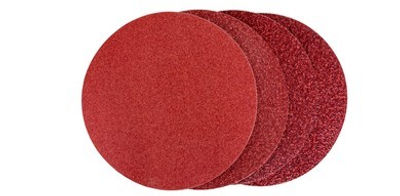

Sanding Discs
A wide range of grades and types of abrasive.
Sanding discs are available for large disc sanding machines. Come with plain or self adhesive backing.
Corebox Hardwear
Brass Corebox Vents, Dowels, Clasps
Corebox Hardwear

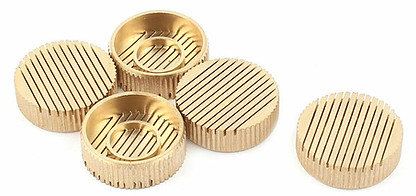

Brass Vents
Corebox Venting
Available is a whole range of sizes. Contact us for more details.
Studs and Steel Hardwear to support and Strengthen Foundry Cores and Moulds
Studs Sprigs Chaplets for foundry moulds and cores John Winter Halifax
Studs Sprigs Chaplets for foundry moulds and cores John Winter Halifax
Hardwear for Sand Cores
For Sand Mould and Core Production & Assembly
Steel Hardwear
Perforated Studs/ Chaplets
Mould Assembly
Perforated studs stay fixed in place long enough to hold a core but also have a faster melting rate so they can often be place in machined areas on castings or used in pressure tested castings.
Steel Hardwear
Studs/ Chaplets
Mould Assembly
Single Studs/ Chaplets have multiple uses to support cores and moulds when casting iron and steel. They are available in hundreds of shapes and sizes. Contact Us for more information.
Steel Hardwear
Pin Studs/
Chaplets
Mould Assembly
Pin Studs are predominantly for greensand mould applications. The pin is pressed into the Greensand mould surface and secured in place for the core to be placed in position.
Steel Hardwear
Plated Studs/ Chaplets
Mould Assembly
Plated, Single, Double or even Triple Layer Studs for heavy cores and moulds are all available from John Winter. There are hundreds of variations. Contact Us for more info.
Steel Hardwear
Sprigs/ Brads
Mould Assembly
Sprigs/ Brads/ Core Nails....whatever you call them, we have them. We have multiple sizes in stock. Contact Us for more information.
Steel Hardwear
Steel Core Wire
Core Strenghtening
Annealed Core wire is malleable so it can be easily bent into complex shapes to fit inside narrow coreboxes and also placed inside deep 'pockets' on patterns to help moulds 'strip' successfully.
Available in bundles and in various diameters.
Steel Hardwear
Wire Pins
Core Strenghtening
Steel Wire Pins are excellent for strengthening thin cores where sand strength alone will not prevent a core from breaking during casting.
Available in various lengths from 2'' up to 8''.
Nylon Hardwear
Nylon Core Vent
Sand Core Venting
Nylon core vent is excellent at removing gases that can become trapped within cores and moulds and produce scrap castings.
Available in 50m coils and various diameters from 4mm to 16mm. Typically in stock ready for next day delivery.
